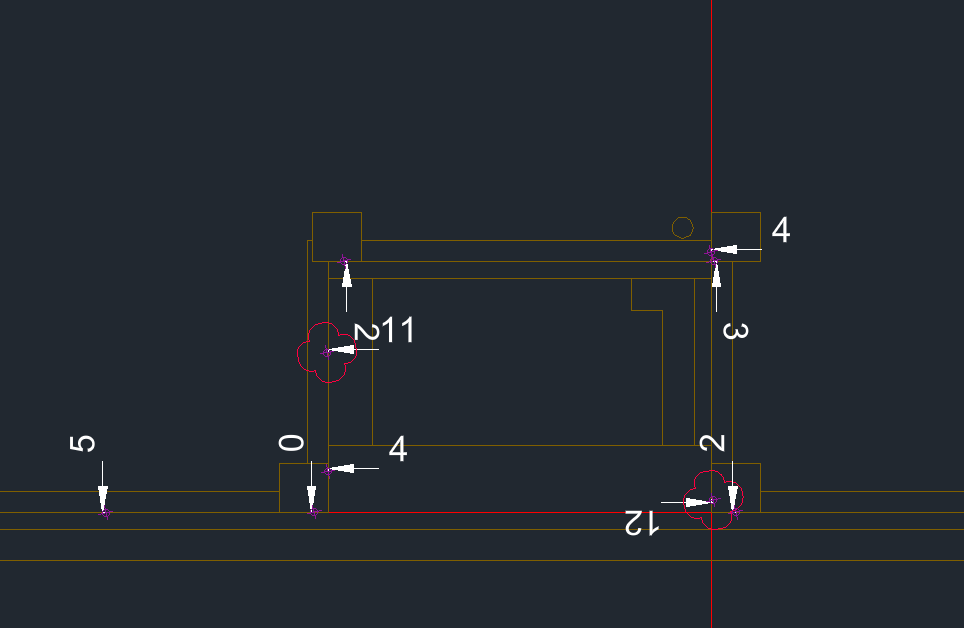

Position: Survey Report

Out of tolerance items clouded in red.

...

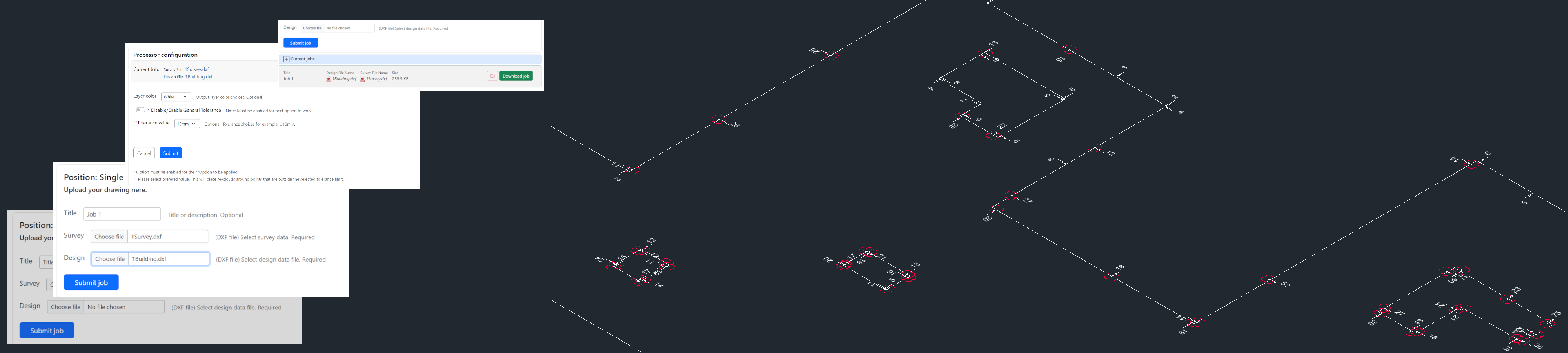

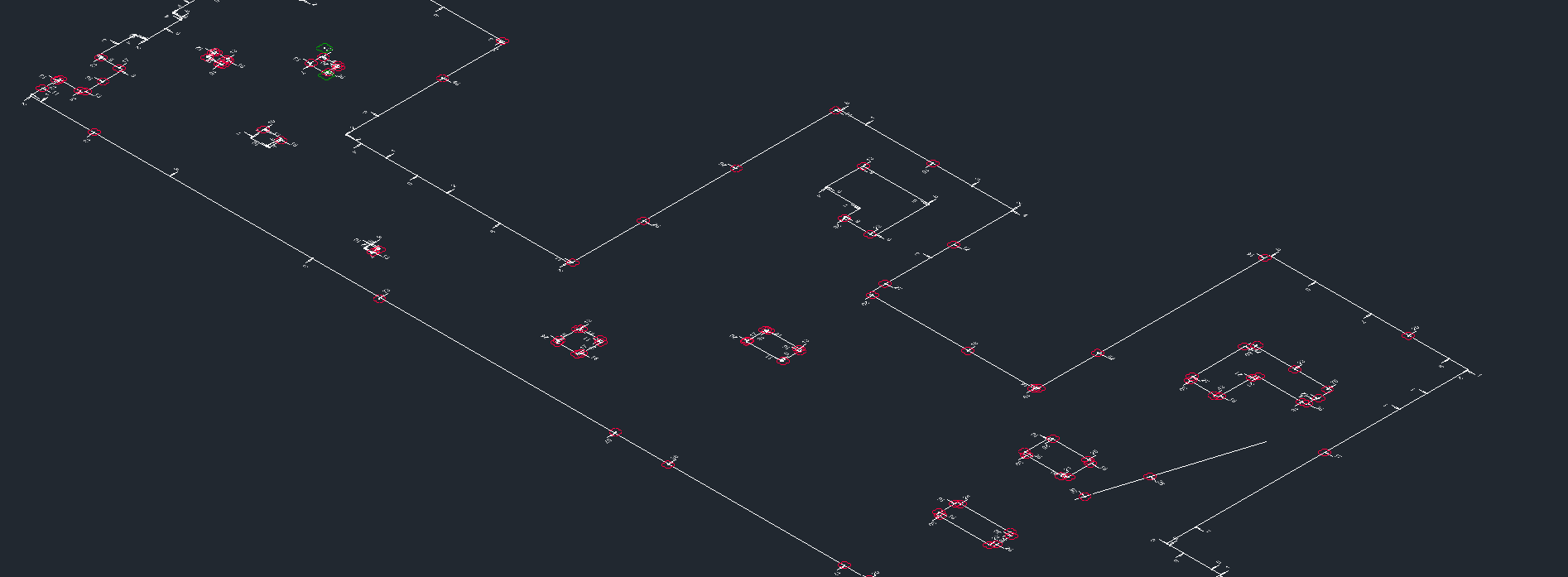

Position: Survey Process

Optional. Out of tolerance items can clouded in red.

As-built processing for everyone

Automated as-built processing service saves valuable time for your project and your staff.

It assists site engineers and as-built engineers to process as-built surveys in a matter of seconds. The main goal of the service is to free valuable time so that it can be used for doing other tasks, like QA documentation, RFIs, ITPs etc.

...
LPA
Level processing

Level as-built processor can be used for processing flat plane surface deviations

Level as-builds are processed using uploaded dxf file that is exported from a total station. During processing, you will be required to enter a value of a design level. Then the application will compare the surveyed data point values against our entered value and produce an as-built which can be downloaded as a dxf file.

...

SLPA
Single level position processing

Single level position as-built processor can be used for processing position deviations of elements where deviation values at one level are sufficient.

Single level position survey is processed using two uploaded dxf format documents: design and survey. Once the documents are uploaded you will be asked to make some optional choices such as colour.

...

MLPA
Multi level position processing

Multi level position as-built processor can be used for processing position deviations of elements where deviation values at one level are not sufficient.

Similarly to Single level position processor Multi level position processor will require two documents in dxf format to be uploaded before processing can commence. Once the documents are uploaded you will be given some optional choices to choose from.

...
